CATTLEMAN SERIES

Bar Top Livestock Trailers

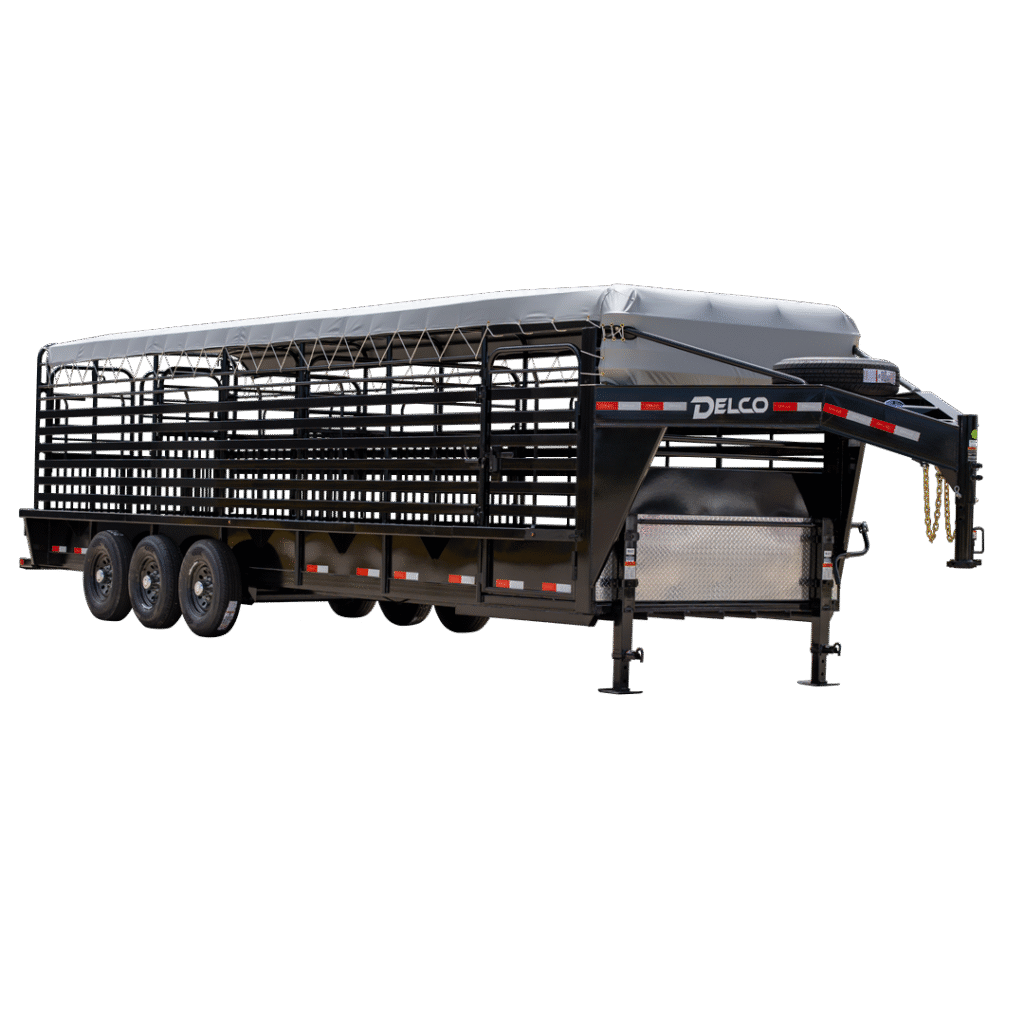

The Cattleman is Delco’s bar top gooseneck livestock trailer — open sided, tough framed, and built to move cattle, goats, sheep, and hogs in serious quantities. Four widths, lengths from 12′ to 40′, and a 25,000 lb gooseneck coupler rated for the kind of loads ranchers actually haul. Built in Paris, Texas.

5+

MODELS

25K

GVWR

6' - 7'6"

MAX WIDTH

40'

MAX LENGTH

EXPLORE THE LINE-UP

B6 SERIES

6' Bar Top tRAILER

GVWR

12,000 LBS.

WIDTH

6 FT.

LENGTHS

12 - 32 FT.

View the B6 Bartop Trailer →

B7 SERIES

7' Bar Top tRAILER

GVWR

25,000 LBS.

WIDTH

7 FT.

LENGTHS

16 - 40 FT.

View the B7 Bartop Trailer →

B8 SERIES

6'8" Bar Top tRAILER

GVWR

25,000 LBS.

WIDTH

6 FT. 8 INCH.

LENGTHS

16 - 40 FT.

View the B8 Bartop Trailer →

B9 SERIES

7'6" Bar Top tRAILER

GVWR

25,000 LBS.

WIDTH

7 FT. 6 INCH.

LENGTHS

16 - 40 FT.

View the B9 Bartop Trailer →

MINI SERIES

MINI Bar Top TRAILER

GVWR

2,000 LBS.

WIDTH

4 FT.

LENGTHS

16 - 40 FT.

View the MINI Bartop Trailer →
Why Delco?

Our Process-Built

Superiority

10" x 12 LB I-BEAM NECK — STANDARD

The neck is where gooseneck trailers fail first. Every Cattleman ships with a 10″ x 12 lb I-beam neck — not a channel neck, not an undersized substitute. Matched directly to the load rating of the trailer it’s attached to.

TRIPLE TORSION AXLES — INDEPENDENT SUSPENSION

Triple axle independent torsion suspension on every model means a smoother ride for your livestock and less structural stress on the trailer over rough terrain. No leaf springs to maintain. No equalizers to replace.

3"x5" ANGLE FRAME ON LENGTHS UNDER 28'

Shorter trailers flex differently than longer ones. Every Cattleman under 28′ ships with a 3″x5″ angle frame reinforcement — additional rigidity built into the structure where it matters most.

25,000 LB ROUND GOOSENECK COUPLER — STANDARD

Every Cattleman is rated and coupled for 25,000 lbs at the hitch. Not an upgrade — standard on every model, every length.

BUTTERFLY REAR GATES — STANDARD

Full-width butterfly rear gates open wide for easy loading from a chute or from the ground. Built for the daily rhythm of ranch work — not for occasional use.

Midnight Black Powder Coat — Built to Last on the Outside Too

PBS9-00005. Applied to every model. Corrosion-resistant, UV-stable, and built to look like new long after lesser trailers have faded and rusted. Custom colors available — but the standard is already right.

Compare

Side-by-Side Specs

Type
Representative Series
GVWR Range
Width Options
Roof / Cover
Sides / Style
Coupler Type
Side Door
Key Differentiator
Cattleman Bar Top
B6 / B7 / B8 / B9
12,000 – 25,000 lbs
6', 6'8", 7', 7'6"
Open Bar Top — Maximum Airflow
1" × 3" Steel Tube Bar Top
2-5/16" 25K Round Gooseneck
No
Open bar top design engineered for maximum airflow and animal comfort on every haul
Cowboy Metal Top
M6 / M7 / M8 / M9
25,000 lbs
6', 6'8", 7', 7'6"
Full Metal Top — Full Weather Protection
1" × 3" Steel Tube Bar Top
2-5/16" 25K Round Gooseneck
No
Full solid metal roof delivers complete weather protection for livestock on extended hauls in any conditions
Cowboy Deluxe
MC
25,000 lbs
6'8"
Full Metal Top — Full Weather Protection
31" Solid Steel Sides
2-5/16" 25K Round Gooseneck
Full Side Door — Driver Side
Premium-equipped from the factory: 4' tack room, rubber mat floor, bullet nose, hay rack, and dome lighting — standard
Rodeo King Premium
P5 / P6 / P7 / P8 / P9
7,000 – 14,000 lbs
5', 6', 6'8", 7', 7'6"
Rear 8' Open
33" Solid Sides
2-5/16" Pop-Up Quick-Release GN
Full Side Door — Standard
Pop-up quick-release coupler and solid sides standard — purpose-built for daily livestock operations that demand fast hitch/unhitch
Bison Groundload Bar Top
GB
20,000 lbs
7'6"
Tarp — Gray Per Foot
1" × 3" Steel Tube Bar Top
2-5/16" 25K Round Gooseneck
No
Ground-level loading eliminates ramps — engineered for high-volume commercial cattle operations at 20K GVWR
Bison Groundload Metal Top
GM
20,000 lbs
7'6"
Full Metal Top — Full Weather Protection
1" × 3" Steel Tube Bar Top
2-5/16" 25K Round Gooseneck
No
Same heavy-duty groundload platform as GB with complete metal roof protection for all-weather commercial operations
Big Haul Commercial
GX
25,000 lbs
7'6"
Full Metal Top — Full Weather Protection
1" × 3" Steel Tube Bar Top
25K King Pin Gooseneck Coupler
No
53' commercial groundload with air ride axle and king pin coupler — Delco's largest livestock trailer, built to order
Mini Bar Top
BG
2,000 lbs
4'
Tarp — Mini Trailer Black
33" Solid Sides
2-5/16" Pop-Up Quick-Release GN
No
Delco's smallest livestock trailer — purpose-built for goats, sheep, and small animals; tows behind most half-ton pickups
GOAT Premium Mini
PG
2,000 lbs
4'
Open
33" Solid Sides
2-5/16" Pop-Up Quick-Release GN
Full Side Door — Passenger Side
Premium mini with full side door standard — purpose-built for frequent daily small animal handling without rear gate operation
Configure

build it

your way

Every Delco Cattleman can be configured with options across gates, interior layout, lighting, and finish. Configure it at order through your authorized dealer. See your authorized Delco dealer for availability, pricing, and configuration recommendations. Options vary by model.



GATE & INTERIOR LAYOUT

  • Sliding center gate
  • Extra center gate
  • Extra center gate (premium)
  • Butterfly center gate
  • Removable center gate
  • Double-bow on rear gate
  • Double-bow on center & rear gates

TACK & STORAGE

  • 4′ walk-in tack room — doors both sides
  • Deluxe slanted tack room
  • Slanted walk-in tack w/ saddle rack & pad bars
  • 4′ tack room w/ 4x dog boxes
  • Name box w/ light

COMFORT & FUNCTION

  • Hay rack
  • Bale spike
  • Gooseneck trough
  • Clean out on front
  • Removable breastplate
  • Water jug holder
  • Heavy duty fenders

Power & Electrical

  • Dome lights (specify quantity)
  • LED light strips (specify quantity)
  • Extra clearance lights (specify quantity)
  • Solar panel

STRUCTURAL UPGRADES

  • Raise neck 6″
  • Air ride suspension
  • Hutch suspension

Shipped Standard — Every Model

  • 25,000 lb gooseneck coupler
  • Triple torsion axles
  • 1″x3″ tubing bar top sides
  • Butterfly rear gates
  • 10″ x 12 lb I-beam neck
  • Dual 12K spring-loaded jacks
  • Midnight Black powder coat
  • Electric brakes

Common Questions

Answered.

What axle rating does the Cattleman use?
The B6 uses triple 7K electric torsion axles (21,000 lb capacity). The B7, B8, and B9 use triple 8K electric torsion axles (24,000 lb capacity).


No — the Cattleman is a bar top stock trailer. Tack room configurations are available as upgrades. If you need a tack room standard, the Rodeo King series includes it from the factory.



Yes. Side doors are available as an upgrade on all Cattleman models. Specify at order through your dealer.

The Cattleman ships with no tarp standard. A tarp roof is available as an upgrade for weather protection on the road.
