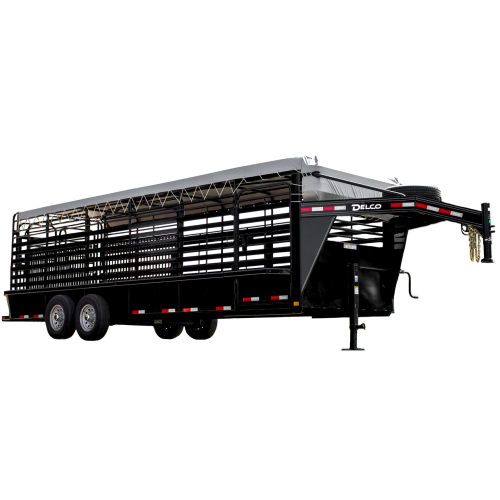

Home › Gooseneck Livestock Trailers › Bartop › B7
Step up to 7′ of interior width and you gain significantly more room for larger cattle breeds and bigger loads. Triple 8K torsion axles handle the extra weight, and the 14-ply ST235/85R16 tires are rated for the heaviest hauls in this series.
Triple 8K electric torsion axles
25,000 lb round gooseneck coupler
10″ x 12 lb I-beam neck
Dual 12K spring-loaded jacks
| Specification | Detail |
|---|---|
| Model | B728 |
| MSRP | $26,710.60 |
| Frame | 10 GA Fender & 10" X 12 lb I-Beam Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (3) 7K Electric, Torsion (95-80) 22 Up |
| Back | Butterfly Rear Gates |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Jack | Jack, (2) 12K Spring Loaded |
| Side | 1"X3" Tubing Sides |
| Side | 1"X3" Tubing Sides |
| Interior Height | Standard 6'6" Tall |
| Roof Option | No Tarp |
| Floor | Treated Pine Wood Floor |
| 3"x5" Angle Frame | 3"x5" Angle Frame (under 28’)******* |
| Side Door | No Side Door |
| Gravel Guard | No Front Gravel Guard |
| Back-up Lights | No Backup Light |
| Center Gate Section | 12'/8'/8'/ |
