Home › Trailers › Dump Trailers › D5

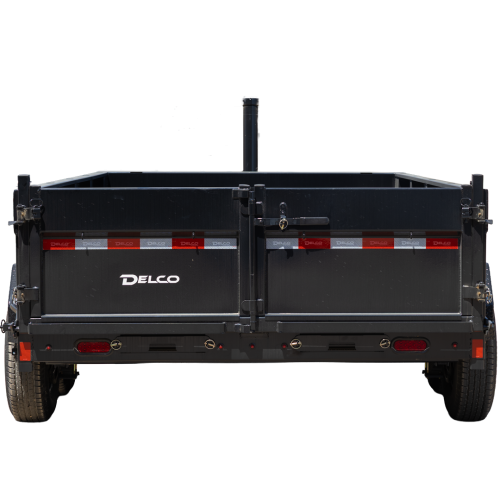

The D5 adapts to the job at hand. Its telescoping hydraulic cylinder design offers compact transport when needed and maximum dumping force on the jobsite — giving contractors reliable performance without the complexity of traditional setups.
Telescoping hydraulic lift for superior dumping force
Heavy-duty 8″ I-beam frame construction throughout
Powder coat finish for long-term corrosion resistance
Available in 12, 14, and 16-foot configurations
| Specification | Detail |
|---|---|
| Model | D514 |
| MSRP | $13,053.60 |
| Frame | 8" I-Beam Frame and Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 7K Electric, Spring (95-80) |
| Back | 3-Way Spreader Gate W/ Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Spare Tire | No Spare Tire |
| Jack | Jack, (1) 12K Spring Loaded |
| Side | Solid Sides 2 FT |
| Floor | 10GA Engineered Bed |
| D-Ring | 4 - D-Rings |
| Slide-in Rear Ramps | 6' Slide-in Rear Ramps |
| Lift | 4.375" x120" 12T, 7" Cylinder |
| Tarp Kit | Pull Back Tarp System |
| Wheel | Black Wheels |
