FLEXIBILITY BUILT IN.

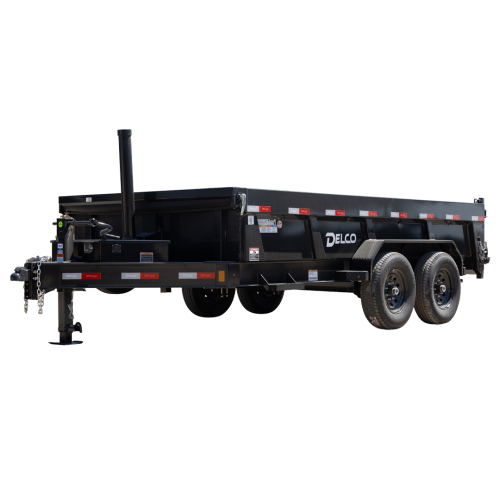

D5 — 14-16K Bumperpull Telescopic Dump

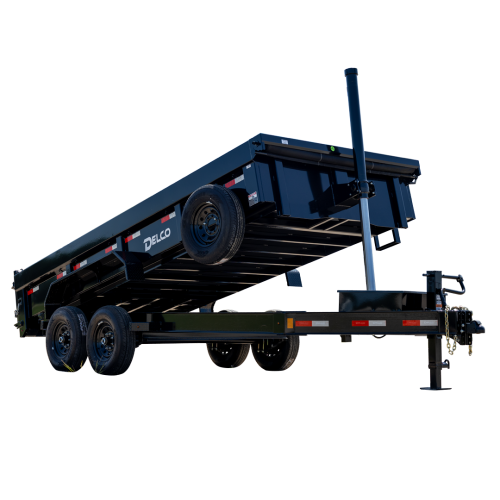

D5_telescopic_dump_Raised_E_i9zh2j
D5_telescopic_dump_Raised_E_i9zh2j

D5 SERIES

14-16K Telescopic Dump

The D5 adapts to the job at hand. Its telescoping hydraulic cylinder design offers compact transport when needed and maximum dumping force on the jobsite — giving contractors reliable performance without the complexity of traditional setups.

ENGINEERING HIGHLIGHTS

Telescoping hydraulic lift for superior dumping force

Heavy-duty 8" I-beam frame construction throughout

Compact footprint for easier transport and storage

Available in 12, 14, and 16-foot configurations

Bumperpull Dump Trailers

D1

7K Bumperpull Dump

D2

12K Bumperpull Dump

D3

14K Bumperpull Dump

D5

14-16K Telescopic Dump

View all Dump Trailers →

Get Help

FIND A DEALER
REQUEST A QUOTE
OWNER MANUALS

STANDARD Specifications

D514 Specifications
Specification Detail
Model D514
MSRP $13,053.60
Frame 8" I-Beam Frame and Tongue
Hitch 2 5/16 Ajustable Coupler BUMPER PULL
Axles Axle, (2) 7K Electric, Spring (95-80)
Back 3-Way Spreader Gate W/ Slide-in Ramps
Color Midnight Black (PBS9-00005)
Tire 235/80R16 LRE Radial 10ply Tires
Spare Tire No Spare Tire
Jack Jack, (1) 12K Spring Loaded
Side Solid Sides 2 FT
Floor 10GA Engineered Bed
D-Ring 4 - D-Rings
Slide-in Rear Ramps 6' Slide-in Rear Ramps
Lift 4.375" x120" 12T, 7" Cylinder
Tarp Kit Pull Back Tarp System
Wheel Black Wheels
