SERIES
Built for the ranch, farm, and feedlot. Delco’s Bumper Pull Livestock Trailers are engineered to move cattle, hogs, sheep, and other livestock safely and efficiently. With torsion axle suspension, treated pine wood floors, full swing rear gates, and 6’6″ of interior height, these trailers are ready to work from day one. Choose from 6′ or 6’8″ wide configurations in lengths from 10 to 18 feet to match your operation.
GVWR
7,100 -12,000 LBS.
WIDTH
6′
LENGTH
10,12,14, & 16 FT.
GVWR
7,100 -12,000 LBS.
WIDTH
6’8″
LENGTH
14,16,& 18 FT.
Animal comfort is the primary driver of our design. Our “Smooth-Interior” mandate means every weld is ground flush and every latch is engineered for quiet, slam-shut operation. By eliminating sharp edges and reducing road-noise vibration through precision assembly, we ensure your animals arrive at their destination calm and healthy.
Delco trailers are built with a level of accuracy usually reserved for the automotive industry. Using CNC plasma technology, every slat and hinge point is cut to within a fraction of an inch. This eliminates the “rattles” common in livestock trailers and creates a more aerodynamic, balanced tow that saves on fuel and reduces wear on your tow vehicle.
While others settle for channel frames that can twist and trap corrosive moisture, Delco engineers every S and H series trailer with high-grade steel tubing. This enclosed architecture provides superior torsional rigidity, ensuring your trailer tracks straight on uneven ranch roads and resists the structural fatigue that leads to long-term maintenance issues.

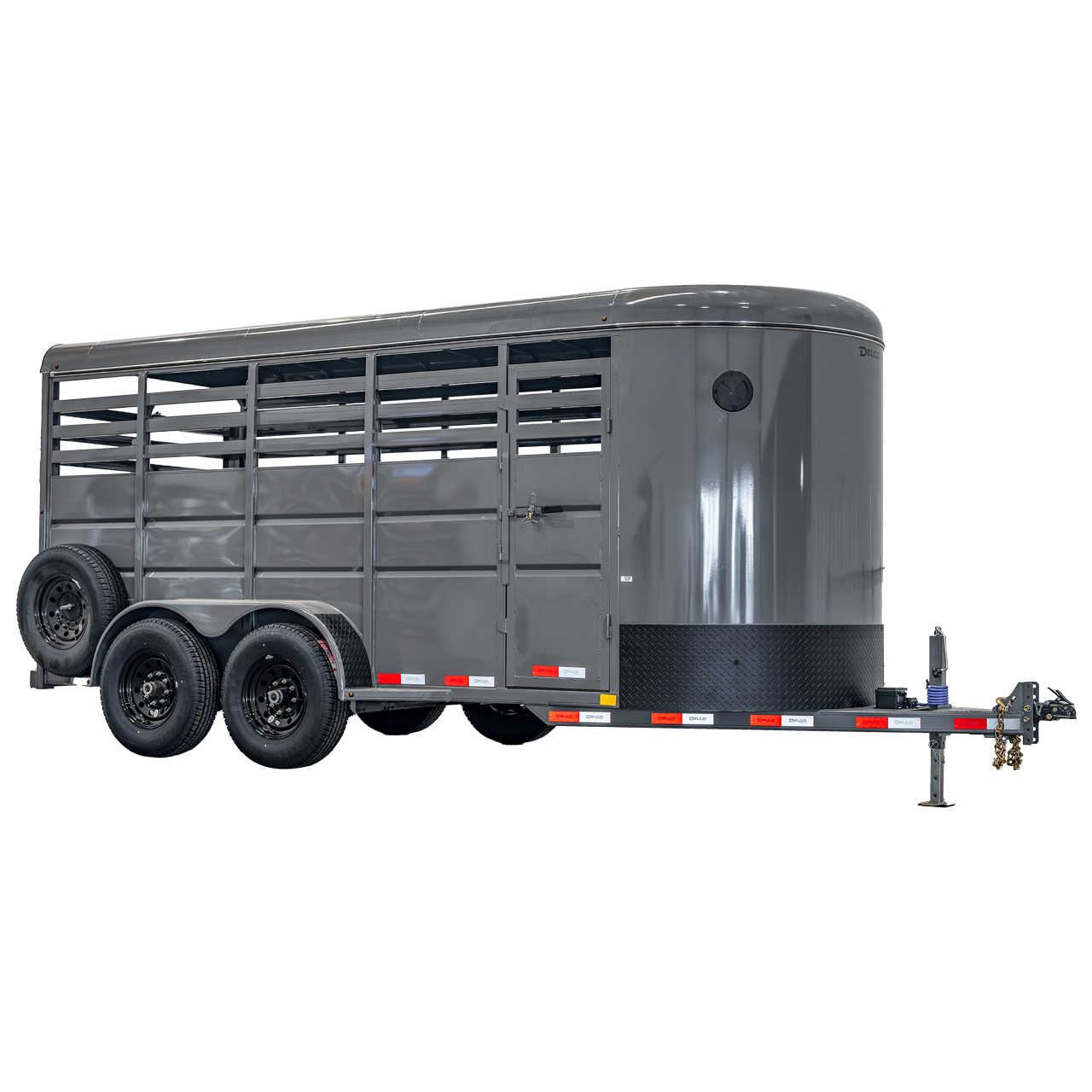

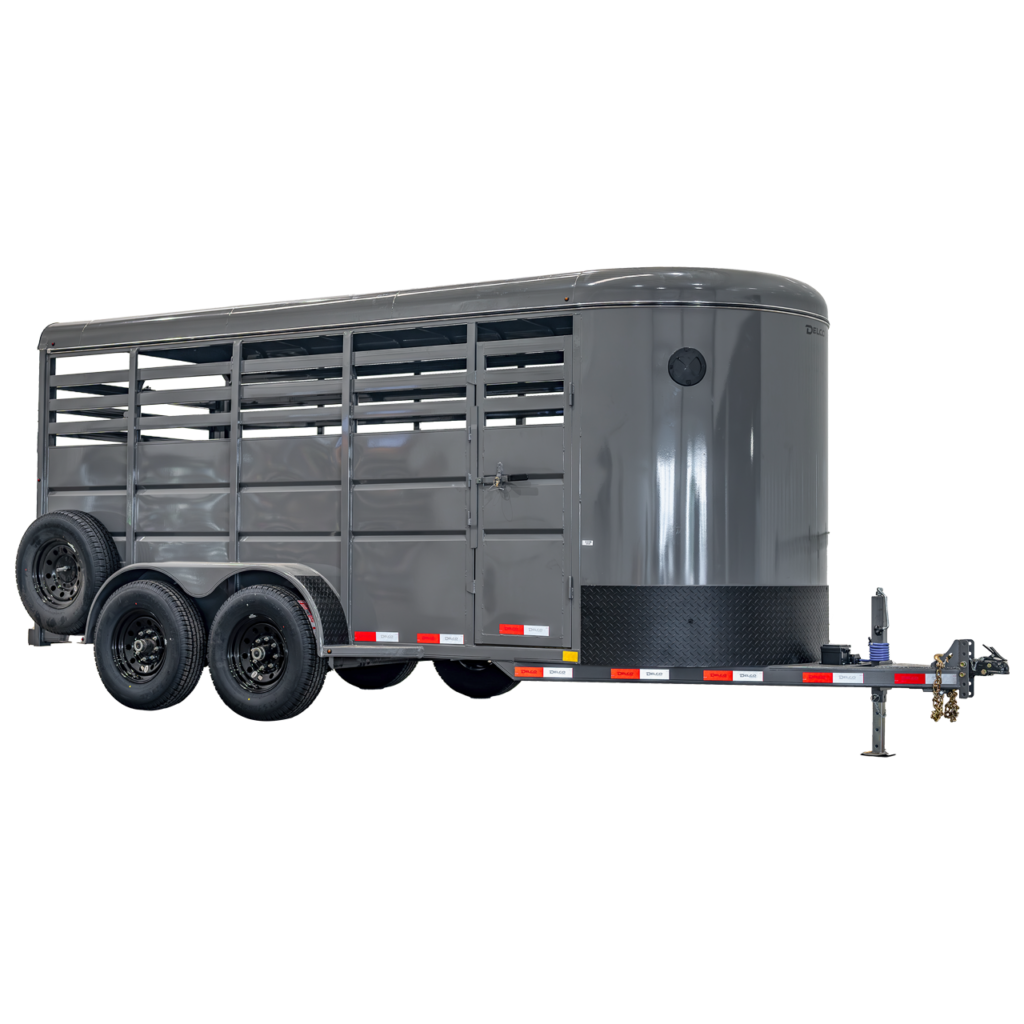

A purpose-built stock bumper pull trailer engineered for cattle, hogs, goats, and general livestock. The S6 is the go-to for small farm and ranch operations that need a dependable, maneuverable trailer without the weight or cost of a gooseneck setup. Tows confidently behind most half-ton pickups.
SPECIFICATION | DETAIL |
GVWR | 7,000 lbs |
Available Lengths | 10', 12', 14', 16' |
Frame | 2" × 3" Steel Tube Frame with 2" × 4" Tube Tongue |
Coupler / Hitch | 2-5/16" Adjustable Bumper Pull Coupler |
Axles | Dual 3½,000 lb Electric Brake Torsion Axles |
Jack(s) | Single 7,000 lb Drop-Leg Jack |
Tires | 235/80R16 Radial Tires |
Flooring | Treated Pine Wood Planking |
Sides | 46" Side Panels (Full Length) |
Rear Gate / Deck | Full-Swing Gate with Sliding Bar |
Interior Height | Standard 6'6" Tall |
Standard Color | Midnight Black — Standard |
Pen / Gate Layout | Solid Center Gate |
Side Door | Full Side Door (Passenger Side) |
Spare Tire | Spare Tire Mount With No Spare |
The S8 delivers 6’8″ of interior width — purpose-built for ranchers who haul larger cattle breeds or mixed livestock loads that need more room to move. Available in 14, 16, and 18-foot lengths, the S8 bumper pull is engineered to handle mid-size cattle and livestock operations with confidence.
SPECIFICATION | DETAIL |
GVWR | 12,000 lbs |
Available Lengths | 14', 16', 18' |
Frame | 2" × 3" Steel Tube Frame with 2" × 4" Tube Tongue |
Coupler / Hitch | 2-5/16" Adjustable Bumper Pull Coupler |
Axles | Dual 6,000 lb Electric Brake Torsion Axles |
Jack(s) | Single 7,000 lb Drop-Leg Jack |
Tires | 235/80R16 Radial Tires |
Flooring | Treated Pine Wood Planking |
Sides | 46" Side Panels (Full Length) |
Rear Gate / Deck | Full-Swing Gate with Sliding Bar |
Interior Height | Standard 6'6" Tall |
Standard Color | Midnight Black — Standard |
Side Door | Full Side Door (Passenger Side) |
Spare Tire | Spare Tire Mount With No Spare |
These customizable options are designed to ensure all Delco Bumperpull Livestock trailers can be tailored to a variety of applications and operator preferences. Available options vary by model and configuration. See your authorized Delco dealer for availability, pricing, and recommendations.

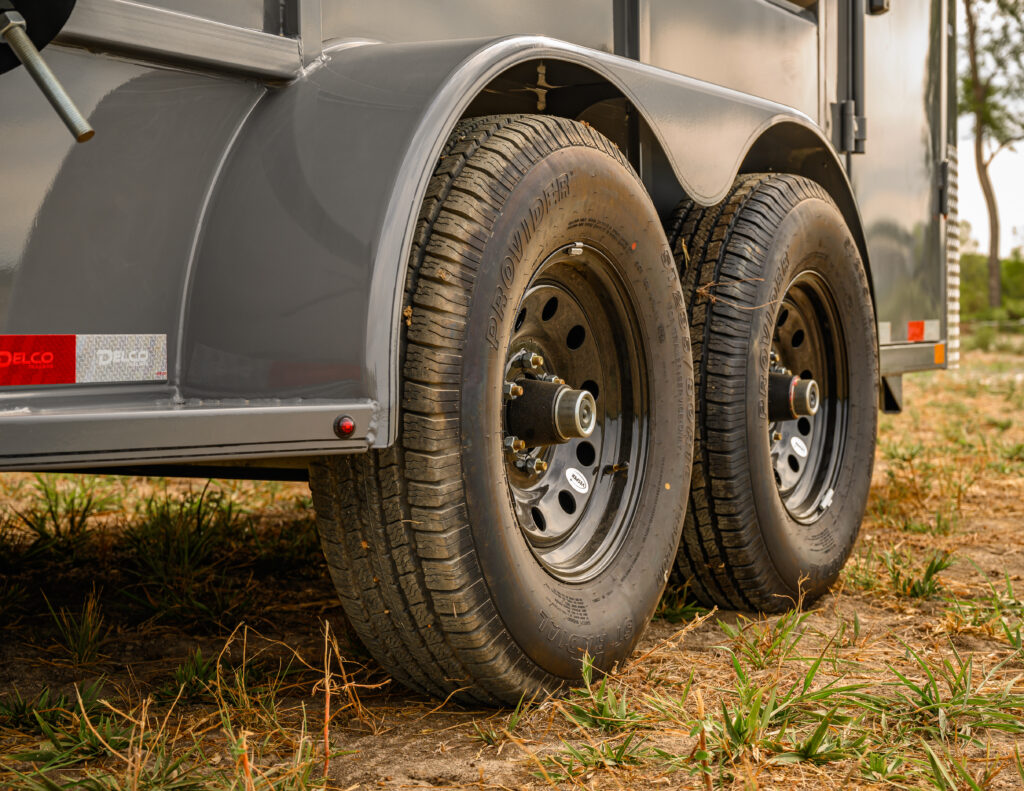

Torsion Axle Suspension: Provides independent wheel articulation, significantly reducing road vibration and animal stress during long hauls.
Cleated Rubber Flooring: Replaces standard decking with a high-traction, cushioned surface for superior animal stability and simplified washout.
Aluminum Gravel Guard: A front-mounted shield designed to protect the trailer’s finish from rock chips and road debris.
Butterfly Rear Gates: Dual-swing rear doors for maximum clearance when loading at chutes or in confined livestock pens.
Side Escape Door: Provides a dedicated operator entry/exit on the passenger side for quick animal inspection and interior access.
Plexiglass Slat Inserts: Custom-fit clear panels for slat-side models that allow for adjustable temperature control during winter transport.
Swing-Out Saddle Racks: Ergonomically designed pivoting racks in the tack room for easy access to heavy gear from the exterior.
Padded Dividers: High-density padding on stall dividers to prevent animal rubbing and enhance comfort during transit.
LED Load Light Package: Strategically placed, high-output LED floods to illuminate the interior and rear loading area for safe operation after dark.
