UTILITY Trailers

BUILT FOR THE OPPORTUNITY

Delco Utility Trailers are the most versatile tool in any fleet, built for homeowners, farmers, contractors, and everyone in between. Every combination of width, length, and axle configuration to get the job done. Simple, rugged, dependable, built in Texas.

EXPLORE THE LINE-UP

Utility SERIES

U0 Series

Pipe Frame Utility

GVWR

3,500 LBS.

WIDTH

60″

LENGTH

8 & 10 FT.

U1 Series

Single Axle Utility

GVWR

3,500 LBS.

WIDTH

60″

LENGTH

8 – 14 FT.

U2 Series

Single Axle Utility

GVWR

3,500 LBS.

WIDTH

77″

LENGTH

8 – 14 FT.

U3 Series

Single Axle Utility

GVWR

3,500 LBS.

WIDTH

83″

LENGTH

10 – 14 FT.

U4 Series

Tandem Axle Utility

GVWR

7,000 LBS.

WIDTH

60″

LENGTH

10 – 18 FT.

U5 Series

Tandem Axle Utility

GVWR

7,000 LBS.

WIDTH

77″

LENGTH

10 – 18 FT.

U7 Series

Single Axle Utility

GVWR

7,000 LBS.

WIDTH

83″

LENGTH

10 – 20 FT.

U7 Series

Tandem Axle Utility with 4" Channel Frame

GVWR

7,000 LBS.

WIDTH

60″

LENGTH

10 – 14 FT.

U8 Series

Tandem Axle Utility with 4" Channel Frame

GVWR

7,000 LBS.

WIDTH

77″

LENGTH

10- 20 FT.

U9 Series

Tandem Axle Utility with 4" Channel Frame

GVWR

7,000 LBS.

WIDTH

83″

LENGTH

10- 22 FT.

Adaptable for Every Load

Customizable

Side Options

Upgrade your trailer with side height extensions and mesh sides to securely transport loose items or taller cargo. Delco’s custom side options ensure your trailer is ready to handle any challenge safely and efficiently.

Simplify Every Haul

Convenient

Loading Ramps

Delco Utility Trailers feature user-friendly loading ramps for effortless handling of equipment and materials. Designed to save time and reduce effort, these ramps make loading and unloading seamless, so you can focus on the job at hand.

Strength Customized to Your Needs

Angle or

Channel Frame

Choose from angle frames for lighter everyday jobs or 4” channel frames for heavy-duty stability and support. No matter the task, Delco frames are built to handle the load with unmatched durability, giving you peace of mind on every haul.

UTILITY TRAILER specs

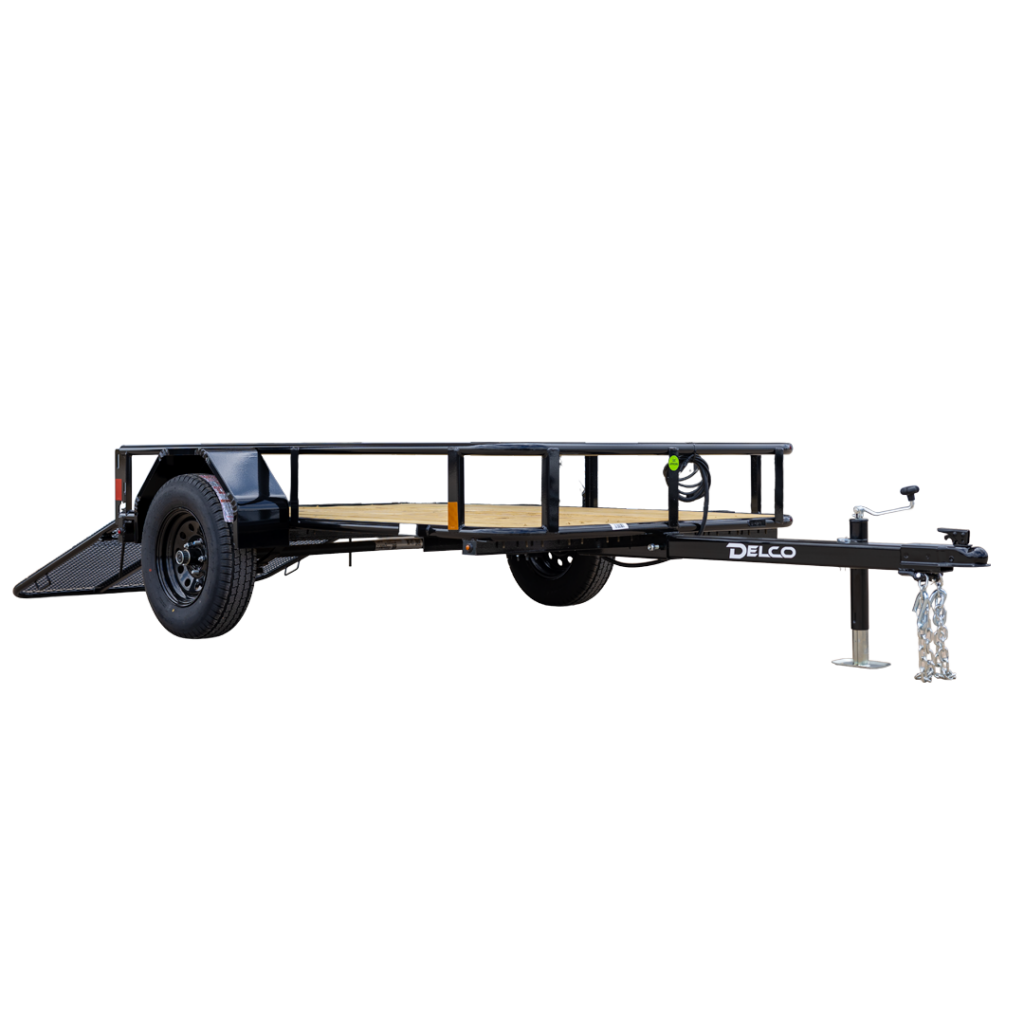

U0

SIMPLE. RUGGED. READY.

Pipe Frame Utility

Delco’s lightest utility trailer, engineered at 60″ wide with a 1-1/4″ pipe frame and 2,000 lb idler axle. Purpose-built for light lawn equipment, ATVs, and basic property hauling behind compact vehicles. Available in 8 and 10-foot lengths.

SPECIFICATION	DETAIL
GVWR	2,000 lbs
Available Lengths	8', 10'
Frame	1-1/4" Pipe Frame
Coupler / Hitch	2" Round Coupler
Axles	Single 2,000 lb Idler Spring Axle
Jack(s)	Single 2,000 lb Swivel Top Wind-Up Jack
Tires	175-80-13 LRC
Flooring	Treated Pine Wood Planking
Sides	Pipe Top Rail
Rear Gate / Deck	Open Straight Deck — No Gate or Ramps
Standard Color	Midnight Black — Standard
Cross-Members	Crossmembers, 2" X 3" X 3/16" Angle on 24" centers
Fenders	Smooth Fenders
Spare Tire	No Spare Tire

ENGINEERING HIGHLIGHTS

1-1/4" pipe frame is Delco's lightest utility trailer frame construction — purpose-built to minimize trailer weight for easy towing behind compact vehicles and SUVs
Single 2,000 lb idler spring axle keeps total trailer weight at a minimum — engineered for light utility loads that don't require brake axle capacity
Pipe top railing provides open-platform load containment for small utility loads — standard on every U0 configuration
Compact 60" wide, 8' or 10' length stores easily and tows behind almost any vehicle — purpose-built for property owners who need occasional light utility capability

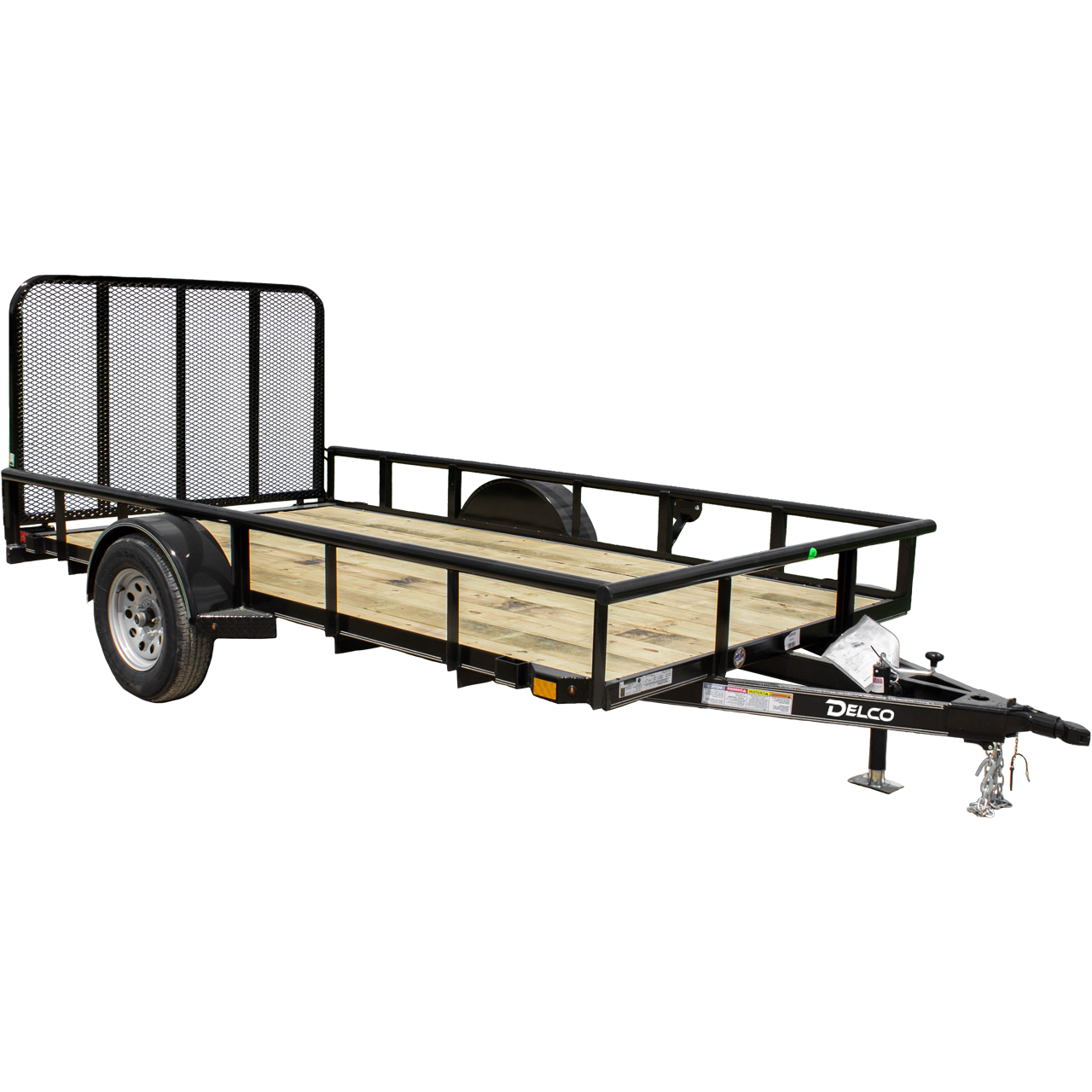

U1

THE ENTRY POINT. BUILT RIGHT.

3K Single Axle Utility

A 60″-wide single-axle utility trailer engineered with a 2″ × 3″ angle frame and 3,500 lb idler axle — purpose-built for light equipment, ATVs, and general utility hauling. Available in 8 to 14-foot lengths for a wide range of personal utility applications.

SPECIFICATION	DETAIL
GVWR	3,500 lbs
Available Lengths	8', 10', 12', 14'
Frame	2" × 3" × 3/16" Angle Iron Frame
Coupler / Hitch	2" A-Frame Coupler
Axles	Single 3½,000 lb Idler Spring Axle
Jack(s)	Single 2,000 lb Swivel Top Wind-Up Jack
Tires	205/75R15 Radial Tires
Flooring	Treated Pine Wood Planking
Sides	2" x 2" x 1/8" Angle Top
Rear Gate / Deck	Open Straight Deck — No Gate or Ramps
Standard Color	Midnight Black — Standard
Cross-Members	Crossmembers, 2" X 3" X 3/16" Angle on 24" centers
Fenders	Smooth Fenders
Spare Tire	No Spare Tire

ENGINEERING HIGHLIGHTS

2" × 3" angle iron frame is the proven construction standard for light single-axle utility trailer applications — lightweight and reliable for everyday hauling
Single 3,500 lb idler spring axle delivers reliable capacity — purpose-built for light equipment, ATVs, and general property utility loads
Open straight deck with no gate provides unrestricted loading flexibility — purpose-built for loading from any direction
2" A-frame coupler provides lightweight hitch compatibility — engineered for standard bumper pull hitch connections

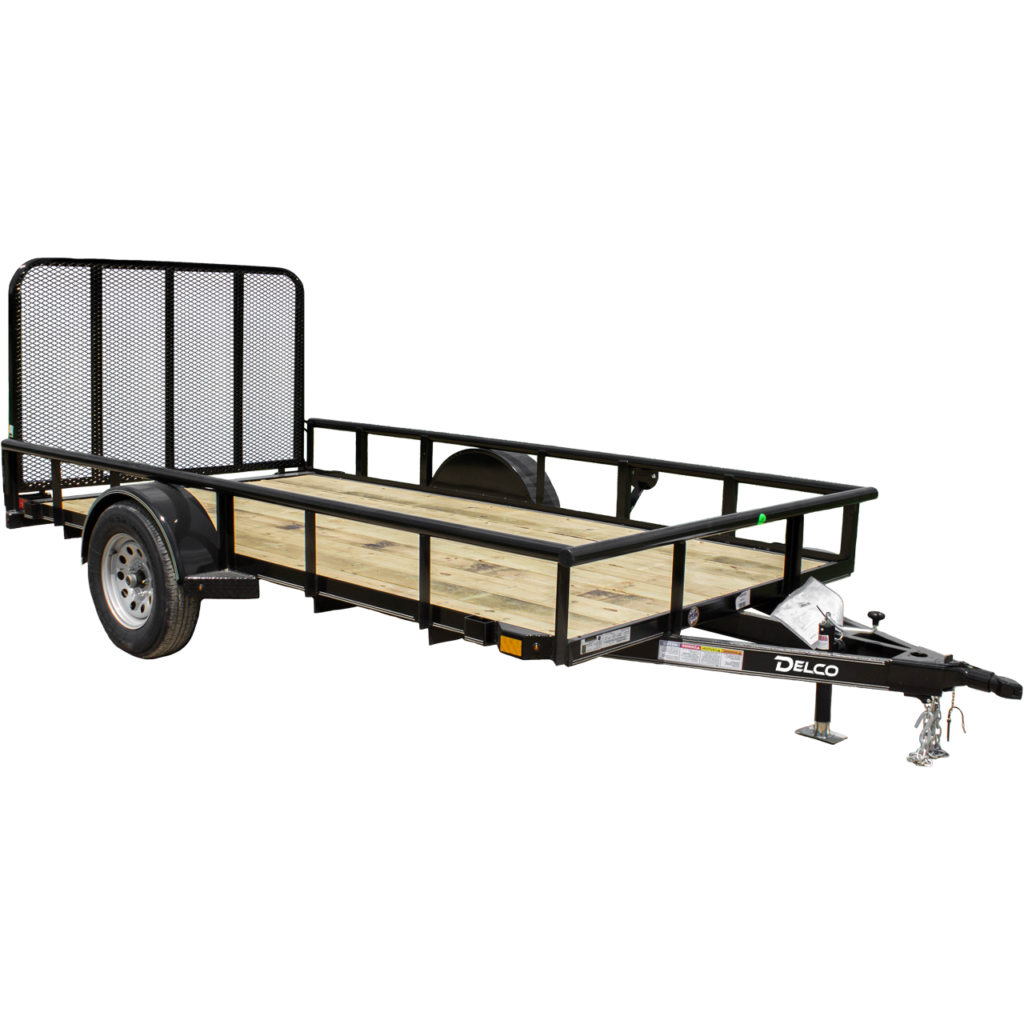

U2

MORE WIDTH. STILL LIGHT.

3K Single Axle Utility

A 77″-wide single-axle utility trailer engineered with a 2″ × 3″ angle frame — purpose-built for ATVs, riding mowers, and larger utility equipment that needs more deck width without the added weight of a dual-axle trailer. Available in 8 to 14-foot lengths.

SPECIFICATION	DETAIL
GVWR	3,500 lbs
Available Lengths	8', 10', 12', 14'
Frame	2" × 3" × 3/16" Angle Iron Frame
Coupler / Hitch	2" A-Frame Coupler
Axles	Single 3½,000 lb Idler Spring Axle
Jack(s)	Single 2,000 lb Swivel Top Wind-Up Jack
Tires	205/75R15 Radial Tires
Flooring	Treated Pine Wood Planking
Sides	2" x 2" x 1/8" Angle Top
Rear Gate / Deck	Open Straight Deck — No Gate or Ramps
Standard Color	Midnight Black — Standard
Cross-Members	Crossmembers, 2" X 3" X 3/16" Angle on 24" centers
Fenders	Smooth Fenders
Spare Tire	No Spare Tire

ENGINEERING HIGHLIGHTS

77" wide deck is engineered to provide more room for ATVs, riding mowers, and larger utility equipment — a meaningful step up over the 60" U1 without adding axle weight
Single 3,500 lb idler spring axle keeps trailer weight low — purpose-built for everyday utility hauling without dual-axle complexity
2" × 3" angle frame construction delivers reliable performance for standard personal utility trailer applications
Available in 8 to 14-foot lengths — engineered to match equipment load size across most personal utility applications

U3

WIDEST SINGLE AXLE UTILITY.

3K Single Axle Utility

Delco’s widest single-axle utility trailer at 83″ — purpose-built for operators who need maximum deck width without dual-axle weight and complexity. Handles wider equipment loads than the U2 while remaining a simple, lightweight single-axle configuration. Available in 10, 12, and 14-foot lengths.

SPECIFICATION	DETAIL
GVWR	3,500 lbs
Available Lengths	10', 12', 14'
Frame	2" × 3" × 3/16" Angle Iron Frame
Coupler / Hitch	2" A-Frame Coupler
Axles	Single 3½,000 lb Idler Spring Axle
Jack(s)	Single 2,000 lb Swivel Top Wind-Up Jack
Tires	205/75R15 Radial Tires
Flooring	Treated Pine Wood Planking
Sides	2" x 2" x 1/8" Angle Top
Rear Gate / Deck	Open Straight Deck — No Gate or Ramps
Standard Color	Midnight Black — Standard
Cross-Members	Crossmembers, 2" X 3" X 3/16" Angle on 24" centers
Fenders	Smooth Fenders
Spare Tire	No Spare Tire

ENGINEERING HIGHLIGHTS

83" wide deck is the widest single-axle utility trailer Delco builds — purpose-built for wider equipment loads that exceed the capacity of 60" and 77" single-axle models
Single 3,500 lb idler spring axle provides the simplest, lightest dual-wheel configuration — engineered for occasional-to-moderate single-axle utility use at 83" width
2" × 3" angle frame with smooth teardrop fenders provides clean, reliable utility trailer construction
Available in 10, 12, and 14-foot lengths — engineered to match most standard single-axle utility equipment transport requirements

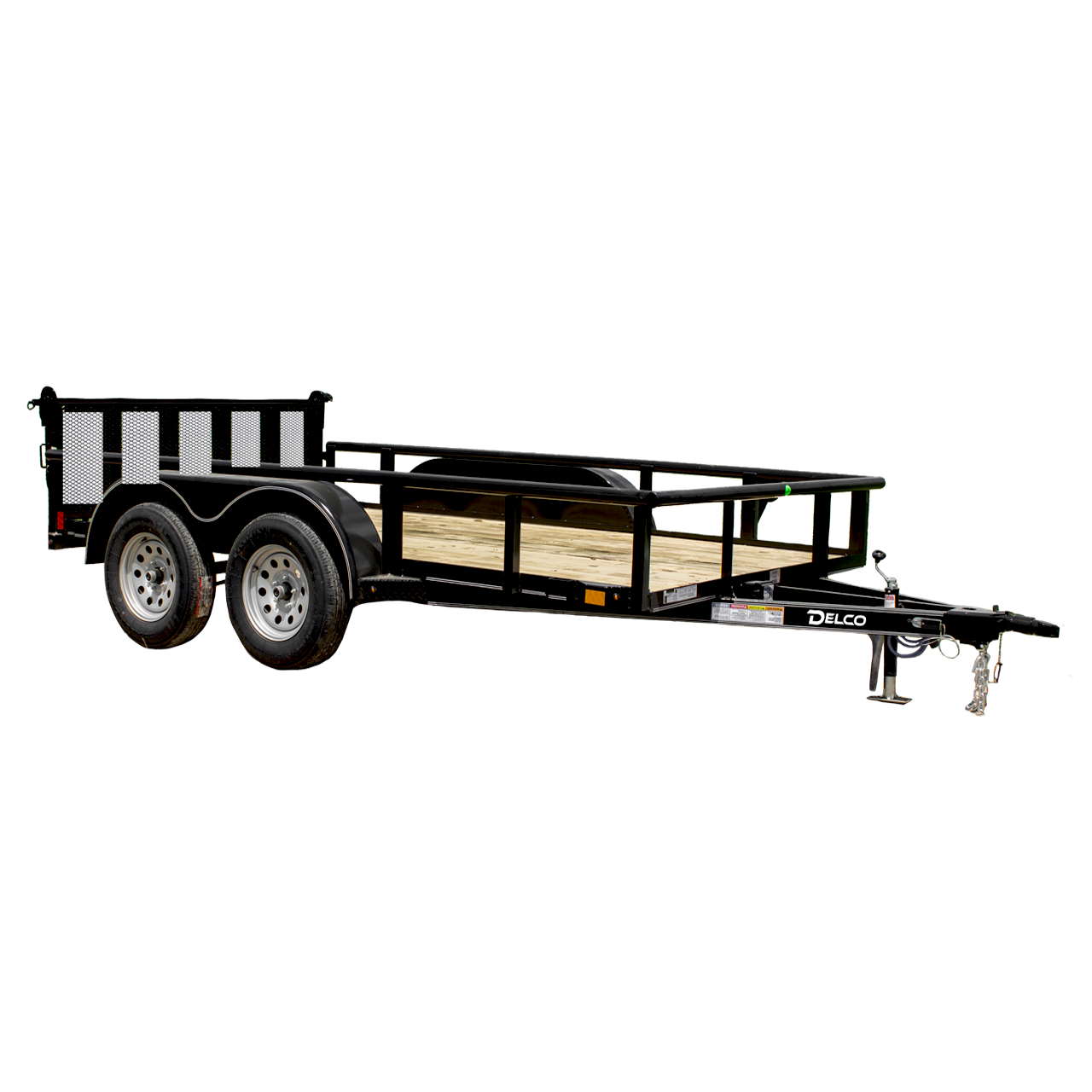

U4

COMPACT. TANDEM READY.

7K Tandem Axle Utility

A 60″-wide tandem utility trailer engineered with dual 3,500 lb axles for a 7,000 lb GVWR — purpose-built for compact-width hauling that requires more capacity than a single-axle trailer. Delivers dual-axle stability at a narrow footprint that navigates tight access points. Available in 10, 12, and 14-foot lengths.

SPECIFICATION	DETAIL
GVWR	7,000 lbs
Available Lengths	10', 12', 14'
Frame	2" × 3" × 3/16" Angle Iron Frame
Coupler / Hitch	2" A-Frame Coupler
Axles	Single 3½,000 lb Idler Spring Axle
Jack(s)	Single 2,000 lb Swivel Top Wind-Up Jack
Tires	205/75R15 Radial Tires
Flooring	Treated Pine Wood Planking
Sides	2" x 2" x 1/8" Angle Top
Rear Gate / Deck	Open Straight Deck — No Gate or Ramps
Standard Color	Midnight Black — Standard
Cross-Members	Crossmembers, 2" X 3" X 3/16" Angle on 24" centers
Fenders	Smooth Fenders
Spare Tire	No Spare Tire

ENGINEERING HIGHLIGHTS

Dual 3,500 lb tandem axles deliver a 7,000 lb GVWR — engineered for heavier utility loads that exceed single-axle U1 and U3 capacity
60" compact width with tandem axles — purpose-built for improved stability under heavier loads while navigating tight residential and property access points
2" × 3" angle frame construction provides reliable utility trailer performance — engineered for the U4's tandem load rating
Open straight deck with no gate or ramps provides unrestricted loading access — standard across all U4 configurations

U5

THE MOST POPULAR UTILITY.

7K Tandem Axle Utility

The most popular tandem utility trailer configuration — engineered at 77″ wide with dual 3,500 lb axles for a 7,000 lb GVWR. Purpose-built for ATVs, zero-turns, and light property maintenance equipment where single-axle capacity isn’t enough. Available in 5 lengths from 10 to 18 feet.

SPECIFICATION	DETAIL
GVWR	7,000 lbs
Available Lengths	10', 12', 14', 16', 18'
Frame	2" × 3" × 3/16" Angle Iron Frame
Coupler / Hitch	2" A-Frame Coupler
Axles	Single 3½,000 lb Idler Spring Axle
Jack(s)	Single 2,000 lb Swivel Top Wind-Up Jack
Tires	205/75R15 Radial Tires
Flooring	Treated Pine Wood Planking
Sides	2" x 2" x 1/8" Angle Top
Rear Gate / Deck	Open Straight Deck — No Gate or Ramps
Standard Color	Midnight Black — Standard
Cross-Members	Crossmembers, 2" X 3" X 3/16" Angle on 24" centers
Fenders	Smooth Fenders
Spare Tire	No Spare Tire

ENGINEERING HIGHLIGHTS

77" wide deck is the most widely selected tandem utility trailer configuration — purpose-built for ATVs, zero-turn mowers, and light equipment that benefit from dual-axle stability
Dual 3,500 lb tandem axles deliver a 7,000 lb GVWR — engineered for loads that exceed single-axle utility trailer capacity
2" × 3" angle frame construction is the proven standard for tandem utility trailer applications — lightweight and reliable for everyday hauling
5 available lengths from 10 to 18 feet — engineered to match varied utility and equipment hauling needs across property sizes

U6

FULL WIDTH. FULL CAPACITY.

7K Tandem Axle Utility

An 83″-wide tandem utility trailer engineered with dual 3,500 lb axles and a 7,000 lb GVWR — purpose-built for contractors and farmers who need maximum open-platform width with dual-axle stability. Available up to 20 feet for larger equipment or multi-item utility loads.

SPECIFICATION	DETAIL
GVWR	7,000 lbs
Available Lengths	10', 12', 14', 16', 18', 20'
Frame	2" × 3" × 3/16" Angle Iron Frame
Coupler / Hitch	2" A-Frame Coupler
Axles	Single 3½,000 lb Idler Spring Axle
Jack(s)	Single 2,000 lb Swivel Top Wind-Up Jack
Tires	205/75R15 Radial Tires
Flooring	Treated Pine Wood Planking
Sides	2" x 2" x 1/8" Angle Top
Rear Gate / Deck	Open Straight Deck — No Gate or Ramps
Standard Color	Midnight Black — Standard
Cross-Members	Crossmembers, 2" X 3" X 3/16" Angle on 24" centers
Fenders	Smooth Fenders
Spare Tire	No Spare Tire

ENGINEERING HIGHLIGHTS

83" wide deck is the widest angle-frame tandem utility trailer Delco builds — purpose-built for side-by-sides, wider zero-turns, and larger property equipment
2" × 3" angle frame construction provides consistent, lightweight utility trailer performance for everyday use
Open platform deck with no gate provides unrestricted loading from any side — standard across all U6 configurations
Teardrop fenders deliver a clean, low-profile appearance — purpose-built for daily property utility use

U7

CHANNEL RIGID. COMPACT.

7K CHANNEL Tandem Utility

A 60″-wide utility trailer engineered with a 4″ channel frame upgrade — purpose-built for operators who need compact-width structure with heavier-duty rigidity for demanding or frequent loads. A meaningful structural step up over the angle-frame U4 in the same compact footprint. Available in 10, 12, and 14-foot lengths.

SPECIFICATION	DETAIL
GVWR	7,000 lbs
Available Lengths	10', 12', 14'
Frame	4" Channel Frame & Tongue
Coupler / Hitch	2" A-Frame Coupler
Axles	Single 3½,000 lb Idler Spring Axle
Jack(s)	Single 2,000 lb Swivel Top Wind-Up Jack
Tires	205/75R15 Radial Tires
Flooring	Treated Pine Wood Planking
Sides	2" x 2" x 1/8" Angle Top
Rear Gate / Deck	Open Straight Deck — No Gate or Ramps
Standard Color	Midnight Black — Standard
Cross-Members	Crossmembers, 2" X 3" X 3/16" Angle on 24" centers
Fenders	Smooth Fenders
Spare Tire	No Spare Tire

ENGINEERING HIGHLIGHTS

4" channel frame is engineered to provide significantly more structural rigidity than angle iron — purpose-built for demanding or frequent utility loads that accelerate angle-frame fatigue
60" compact width in channel frame construction — purpose-built for operators who need compact size with heavy-duty structural integrity
Dual 3,500 lb tandem axles deliver a 7,000 lb GVWR — matched to the U7's channel frame construction and load rating
2" A-frame coupler is rated for standard hitch connection at the U7's full load capacity

U8

CHANNEL WIDE. SIX LENGTHS.

7K CHANNEL Tandem Utility

A 77″-wide utility trailer engineered with a 4″ channel frame — purpose-built as the commercial-grade tandem utility trailer for operators who load heavy or frequent equipment loads that demand more than an angle-frame trailer provides. Available up to 20 feet.

SPECIFICATION	DETAIL
GVWR	7,000 lbs
Available Lengths	10', 12', 14', 16', 18', 20'
Frame	4" Channel Frame & Tongue
Coupler / Hitch	2" A-Frame Coupler
Axles	Single 3½,000 lb Idler Spring Axle
Jack(s)	Single 2,000 lb Swivel Top Wind-Up Jack
Tires	205/75R15 Radial Tires
Flooring	Treated Pine Wood Planking
Sides	2" x 2" x 1/8" Angle Top
Rear Gate / Deck	Open Straight Deck — No Gate or Ramps
Standard Color	Midnight Black — Standard
Cross-Members	Crossmembers, 2" X 3" X 3/16" Angle on 24" centers
Fenders	Smooth Fenders
Spare Tire	No Spare Tire

ENGINEERING HIGHLIGHTS

4" channel frame is engineered to handle heavy or frequent equipment loads — a meaningful structural upgrade over the angle-frame U5 for commercial-weight daily use
77" wide deck in channel frame construction delivers the commercial-grade tandem utility configuration — purpose-built for operators who prioritize structure over weight savings
Dual 3,500 lb tandem axles deliver a 7,000 lb GVWR matched to the U8's channel frame construction
Open platform deck provides unrestricted loading access from any direction — standard across all U8 configurations

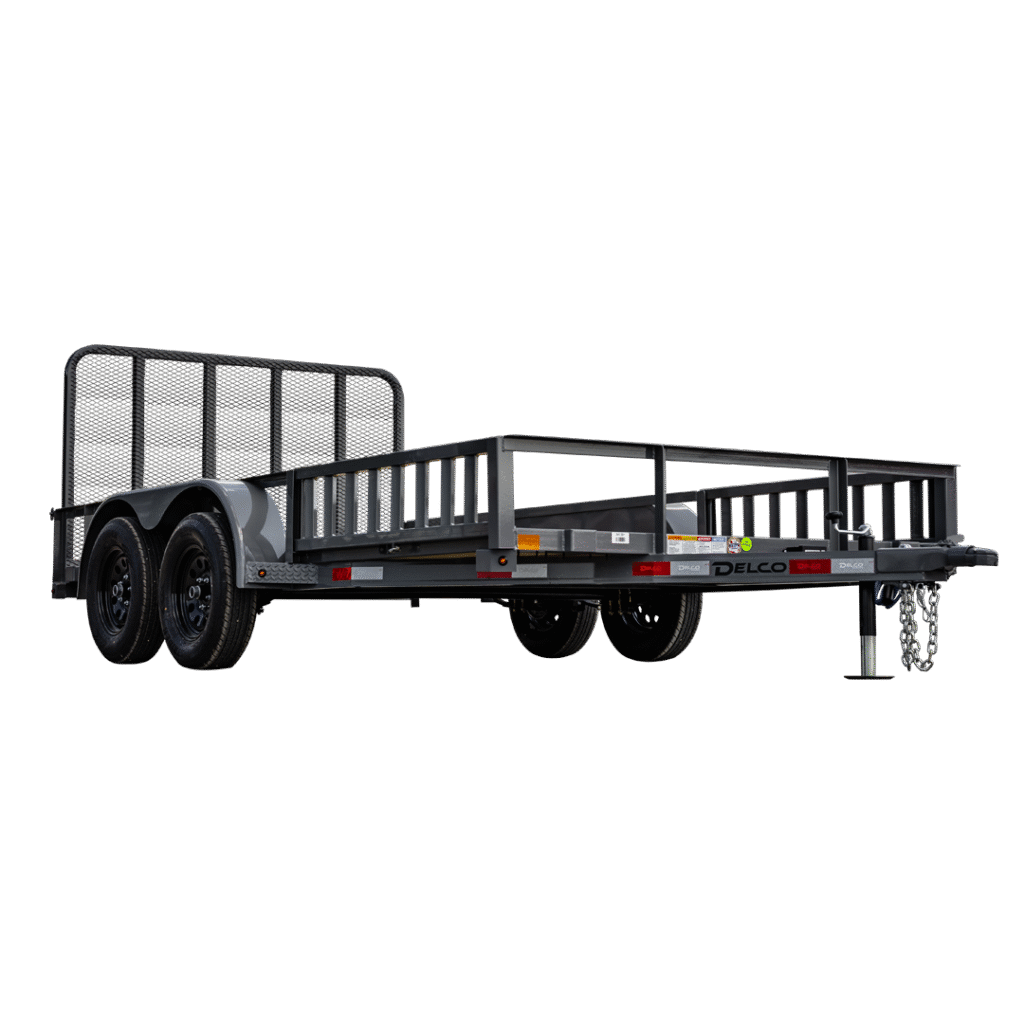

U9

THE TOP OF THE UTILITY LINEUP.

7K Tandem Axle Utility

Delco’s heaviest-duty utility trailer — engineered at 83″ wide with a 4″ channel frame and dual 3,500 lb axles. Purpose-built for commercial-weight daily use where the angle-frame U6 isn’t enough. Available up to 22 feet — the longest utility trailer in the Delco lineup.

SPECIFICATION	DETAIL
GVWR	7,000 lbs
Available Lengths	10', 12', 14', 16', 18', 20', 22'
Frame	4" Channel Frame & Tongue
Coupler / Hitch	2" A-Frame Coupler
Axles	Single 3½,000 lb Idler Spring Axle
Jack(s)	Single 2,000 lb Swivel Top Wind-Up Jack
Tires	205/75R15 Radial Tires
Flooring	Treated Pine Wood Planking
Sides	2" x 2" x 1/8" Angle Top
Rear Gate / Deck	Open Straight Deck — No Gate or Ramps
Standard Color	Midnight Black — Standard
Cross-Members	Crossmembers, 2" X 3" X 3/16" Angle on 24" centers
Fenders	Smooth Fenders
Spare Tire	No Spare Tire

ENGINEERING HIGHLIGHTS

4" channel frame is Delco's heaviest-duty utility trailer construction — engineered for commercial-weight equipment loads hauled day after day without structural fatigue
83" wide deck in full channel construction delivers the most structurally capable utility trailer Delco builds — purpose-built for the widest and heaviest utility loads
Dual 3,500 lb tandem axles deliver a 7,000 lb GVWR matched to the U9's channel frame construction and maximum width
Channel frame construction is engineered to handle daily commercial-weight loading across the U9's full length range without rack or fatigue over time

Customizable

Options FOR DELCO UTILITY TRAILERS

Every Utility trailer is built to order. Configure yours with any combination of the options below. See your authorized Delco dealer for availability, pricing, and recommendations.

LOAD MANAGEMENT

D-ring tie-down upgrades
Stake pockets
Side rail extensions
Expanded metal decking

AXLES & RUNNING GEAR

Spare tire and carrier
Receiver hitch

RAMPS

Rear ramp upgrades
Side rail ramp options
