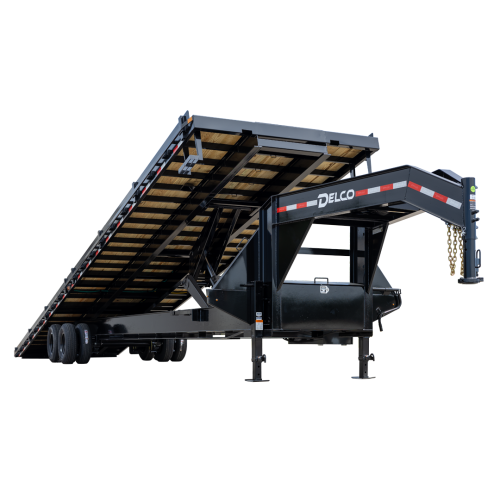

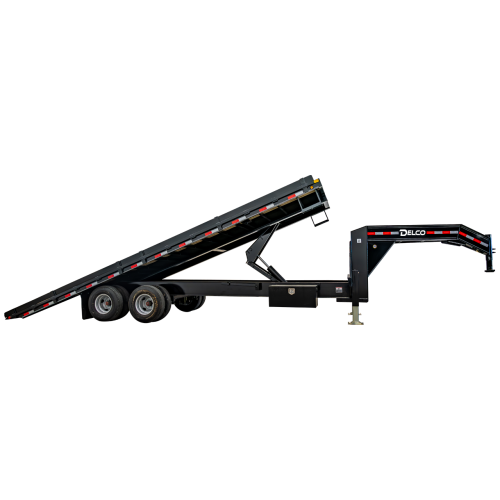

T9 | 20K Gooseneck Tandem Dual Full Tilt Flatbed

TANDEM DUAL. FULL TILT. MAXIMUM.

T9_tandem_dual_Tilt_E_mqo0x1
T9_tandem_dual_Tilt_E_mqo0x1
T8_Tilt_F_shadow_sehqkk
T8_Tilt_A_qvzkva

T9 SERIES

20K Gooseneck Tandem Dual Full Tilt Flatbed

Delco's heaviest-duty tilt configuration. The T9 combines tandem dual axles with a full-tilt 102-inch wide flatbed in eight length configurations from 26 to 40 feet — for commercial operations consistently moving the heaviest equipment loads.

ENGINEERING HIGHLIGHTS

Tandem dual axle for maximum tilt trailer capacity

Full-tilt 102" wide deck from 26' to 40'

Eight length configurations for commercial operations

Maximum payload capacity with ground-level loading convenience

TILT Trailers

T1

14K BumperPull FULL Tilt

T2

14K BumperPull Tilt

T3

14K BumperPull Tilt

T4

14K Gooseneck Tilt

View all TILT Trailers →

Get Help

FIND A DEALER
REQUEST A QUOTE
OWNER MANUALS

STANDARD Specifications

T934 Specifications
Specification Detail
Model T934
MSRP $27,008.80
Frame 12" x 19 lb I-Beam Frame & Neck
Hitch 2 5/16" 25K Round Gooseneck Coupler
Axles Axle, (2) 10K Electric, Dual Tandem (74-47)
Tire 235/80R16 LRE Radial 10ply Tires
Back Tilt Deck with Knife Edge
Color Midnight Black (PBS9-00005)
Cross-member Crossmembers, 3" I-Beam on 16" Centers
Jack Jack, (2) 12K Spring Loaded
Side 6" Channel Outer Frame
Floor Treated Pine Wood Floor
Tire 235/80R16 LRE Radial 10ply Tires
Tire 235/80R16 LRE Radial 10ply Tires
Tire 235/80R16 LRE Radial 10ply Tires
Frame Bridge Frame Bridge (per foot)
Low-Profile Low-Pro Option
