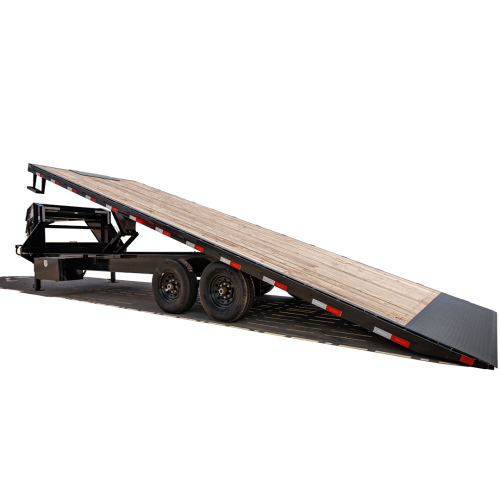

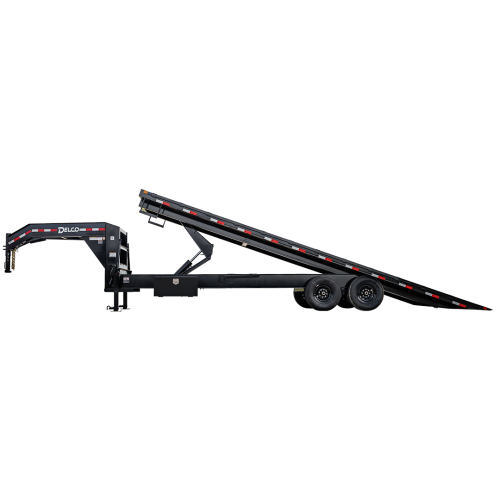

T8 | Single Wheel Full Tilt Flatbed

SINGLE WHEEL. FULL TILT. LONG.

T8 SERIES

Single Wheel Full Tilt Flatbed

The T8 extends full-tilt capability into longer flatbed configurations. Six length options from 24 to 34 feet with a 102-inch wide full-tilt deck for operators moving larger equipment that needs full ground-level access.

ENGINEERING HIGHLIGHTS

Full-tilt 102" wide deck in 6 longer configurations

Single wheel configuration from 24' to 34'

Ground-level loading for larger machinery

Maximum deck surface for varied equipment widths

STANDARD Specifications

T830 Specifications
Specification Detail
Model T830
MSRP $19,146.40
Frame 6" Channel Frame & 10" x 12 lb I-Beam Neck
Hitch 2 5/16" 25K Round Gooseneck Coupler
Axles Axle, (2) 7K Electric, Spring (73-58)
Tire 235/80R16 LRE Radial 10ply Tires
Back Tilt Deck with Knife Edge
Color Midnight Black (PBS9-00005)
Cross-member Crossmembers, 3" I-Beam on 16" Centers
Jack Jack, (2) 12K Spring Loaded
Floor Treated Pine Wood Floor
Torque Tube Torque Tube & Bridge Frame
