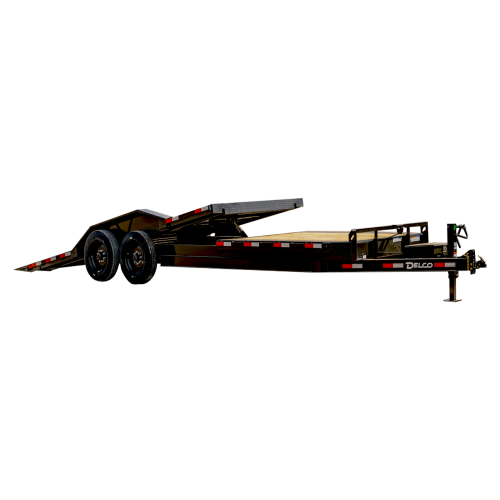

T7 | 14K BumperPull FULL TILT

FULL TILT. 102" WIDE. EQUIPMENT.

T7 SERIES

14K BumperPull FULL TILT

Full tilt at 102 inches wide for operators who need maximum deck width during loading. The T7's full-tilt system brings the entire wide deck to ground level — critical for loading wide equipment that can't be safely driven up ramps.

ENGINEERING HIGHLIGHTS

Full-tilt 102" wide deck for maximum loading access

14K GVWR in three length configurations

Ground-level loading eliminates ramp safety concerns

Available in 20', 22', and 24' lengths

STANDARD Specifications

T722 Specifications
Specification Detail
Model T722
MSRP $12,490.80
Frame 6" I-Beam Tongue 6" Channel Frame
Hitch 2 5/16 Adjustable Coupler Bumper Pull
Axles Axle, (2) 7K Electric, Torsion (95-80) 22 Up
Back Tilt Deck with Knife Edge
Color Midnight Black (DBS9-0UK12)
Tire 235/80R16 LRE Radial 10ply Tires
Cross-member Crossmembers, 3" Channel on 16" Centers
Jack Jack, (1) 7K Drop-Leg
Power/Gravity Option Power UP/Down W/ Pump and Tool Box
Fenders Drive Over Fenders (10" C-channel)
Floor Treated Pine Wood Floor
Spare Tire No Spare Tire
