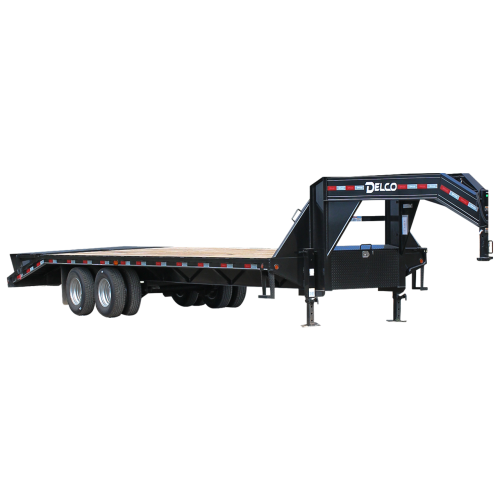

F5 | 30K Low-Pro Dual Tandem Flatbed

30K. COMMERCIAL GRADE.

F5 SERIES

30K Low-Pro Dual Tandem Flatbed

Built for serious commercial hauling, the F5 raises the bar to 30,000 lb GVWR with a low-profile dual tandem configuration. Fifteen length options from 20 to 44 feet accommodate virtually any heavy equipment hauling scenario with reinforced structural steel throughout.

ENGINEERING HIGHLIGHTS

30,000 lb GVWR for extreme-duty commercial use

Low-profile dual tandem design for heavy load stability

15 length configurations from 20' to 44'

Reinforced structural steel for high-frequency use

Flatbed Trailers

F1

14K Gooseneck Flatbed

F2

16K Gooseneck Flatbed (8K Axles)

F3

20K Gooseneck Flatbed

F5

30K Low-Pro Dual Tandem Flatbed

View all FLATBED Trailers →

Get Help

STANDARD Specifications

F520 Specifications

Specification	Detail
Model	F520
MSRP	$21,298.20
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F522 Specifications

Specification	Detail
Model	F522
MSRP	$21,365.40
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F524 Specifications

Specification	Detail
Model	F524
MSRP	$21,700.00
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F525 Specifications

Specification	Detail
Model	F525
MSRP	$21,834.40
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F526 Specifications

Specification	Detail
Model	F526
MSRP	$21,970.20
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F528 Specifications

Specification	Detail
Model	F528
MSRP	$22,236.20
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F530 Specifications

Specification	Detail
Model	F530
MSRP	$22,503.60
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Suspension	Standard Suspension
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Floor	Treated Pine Wood Floor
Jack	Jack, (2) 12K Spring Loaded
Low-Profile	Low-Pro Option

F532 Specifications

Specification	Detail
Model	F532
MSRP	$23,441.60
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric/Hydraulic Disc, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F534 Specifications

Specification	Detail
Model	F534
MSRP	$23,709.00
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F535 Specifications

Specification	Detail
Model	F535
MSRP	$23,843.40
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F536 Specifications

Specification	Detail
Model	F536
MSRP	$24,045.00
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F538 Specifications

Specification	Detail
Model	F538
MSRP	$24,245.20
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F540 Specifications

Specification	Detail
Model	F540
MSRP	$24,579.80
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F542 Specifications

Specification	Detail
Model	F542
MSRP	$25,183.20
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Tire	9 - 235/75R17.5 LRI Radial 18ply Tire
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Torque Tube	Torque Tube & Bridge Frame
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F544 Specifications

Specification	Detail
Model	F544
MSRP	$25,785.20
Frame	12" x 22 lb I-Beam Frame & Neck
Hitch	2 5/16" 30K Gooseneck Coupler
Axles	Axle, (2) 15K Electric, Spring (75-44)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	9 - 215/75R17.5 LRH Radial 16ply Tires
Tire	9 - 235/75R17.5 LRI Radial 18ply Tire
Suspension	Standard Suspension
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Torque Tube	Torque Tube & Bridge Frame
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option
