F3 | 20K Gooseneck Dual-Tandem Flatbed

HEAVY DUTY IN A SINGLE AXLE.

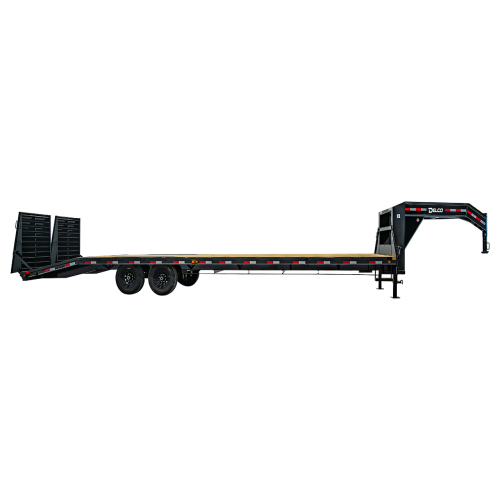

F1- 14K DECKOVER GOOSENECK

F3 SERIES

20K Gooseneck Dual-Tandem Flatbed

The F3 pushes to 20,000 lb GVWR for operators moving heavier construction equipment, agricultural machinery, or oversized materials. Ten length options from 25 to 40 feet make this a top choice for contractors and equipment rental companies running high-utilization fleets.

ENGINEERING HIGHLIGHTS

20,000 lb GVWR for maximum single-axle capacity

102" wide deck across 10 length configurations

Reinforced frame for consistent heavy-load performance

25' to 40' lengths for large equipment hauling

Flatbed Trailers

F1

14K Gooseneck Flatbed

F2

16K Gooseneck Flatbed (8K Axles)

F3

20K Gooseneck Flatbed

F5

30K Low-Pro Dual Tandem Flatbed

View all FLATBED Trailers →

Get Help

STANDARD Specifications

F325 Specifications

Specification	Detail
Model	F325
MSRP	$15,577.80
Frame	12" x 19 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 10K Electric, Spring (85-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F326 Specifications

Specification	Detail
Model	F326
MSRP	$15,853.60
Frame	12" x 19 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 10K Electric, Spring (85-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F328 Specifications

Specification	Detail
Model	F328
MSRP	$17,600.80
Frame	12" x 19 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 10K Electric, Spring (85-64)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F330 Specifications

Specification	Detail
Model	F330
MSRP	$17,602.20
Frame	12" x 19 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 10K Electric, Spring (85-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F332 Specifications

Specification	Detail
Model	F332
MSRP	$17,875.20
Frame	12" x 19 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 10K Electric, Spring (85-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F334 Specifications

Specification	Detail
Model	F334
MSRP	$18,425.40
Frame	12" x 19 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 10K Electric, Spring (85-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F335 Specifications

Specification	Detail
Model	F335
MSRP	$18,699.80
Frame	12" x 19 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 10K Electric, Spring (85-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F336 Specifications

Specification	Detail
Model	F336
MSRP	$18,974.20
Frame	12" x 19 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 10K Electric, Spring (85-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F338 Specifications

Specification	Detail
Model	F338
MSRP	$19,248.60
Frame	12" x 19 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 10K Electric, Spring (85-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F340 Specifications

Specification	Detail
Model	F340
MSRP	$19,523.00
Frame	12" x 19 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 10K Electric, Spring (85-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 235/75R17.5 LRI Radial 18ply Tire
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option
