F2 | 16K Gooseneck Flatbed

STEP UP CAPACITY. SAME PROFILE.

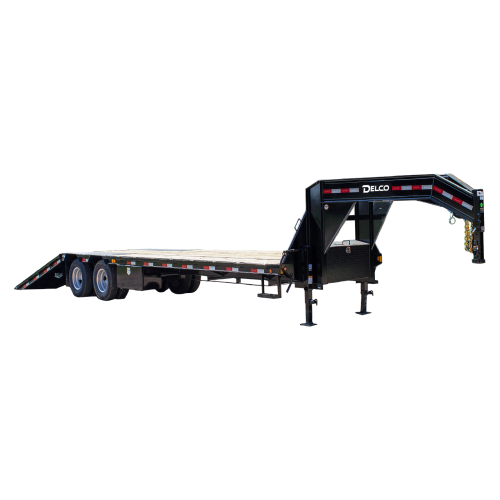

F2- 16k Deckover Gooseneck

F2 SERIES

16K Gooseneck Flatbed

When 14K isn't quite enough, the F2 steps up to 16,000 lb GVWR without changing the 102-inch wide footprint. Thirteen length options give contractors and equipment dealers the flexibility to handle heavier machinery with the same familiar single-axle towing profile.

ENGINEERING HIGHLIGHTS

16,000 lb GVWR for heavier equipment and machinery

Full 102" wide deck across 13 length configurations

Single-axle towing profile — easy to maneuver

Heavy-duty frame construction for commercial daily use

Flatbed Trailers

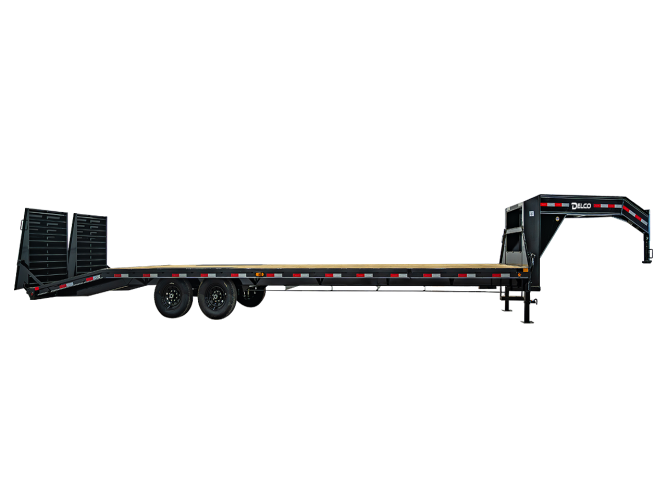

F1

14K Gooseneck Flatbed

F2

16K Gooseneck Flatbed (8K Axles)

F3

20K Gooseneck Flatbed

F5

30K Low-Pro Dual Tandem Flatbed

View all FLATBED Trailers →

Get Help

STANDARD Specifications

F216 Specifications

Specification	Detail
Model	F216
MSRP	$13,963.60
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F220 Specifications

Specification	Detail
Model	F220
MSRP	$14,225.40
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F222 Specifications

Specification	Detail
Model	F222
MSRP	$14,487.20
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F225 Specifications

Specification	Detail
Model	F225
MSRP	$14,749.00
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F226 Specifications

Specification	Detail
Model	F226
MSRP	$15,047.20
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	5 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F228 Specifications

Specification	Detail
Model	F228
MSRP	$15,346.80
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	7 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F230 Specifications

Specification	Detail
Model	F230
MSRP	$15,645.00
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	7 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Low-Profile	Low-Pro Option

F232 Specifications

Specification	Detail
Model	F232
MSRP	$15,943.20
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	7 - ST235/85R16 LRG Radial 14ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F234 Specifications

Specification	Detail
Model	F234
MSRP	$16,241.40
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	7 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F235 Specifications

Specification	Detail
Model	F235
MSRP	$16,539.60
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	7 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F236 Specifications

Specification	Detail
Model	F236
MSRP	$16,839.20
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	7 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F238 Specifications

Specification	Detail
Model	F238
MSRP	$17,137.40
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	7 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option

F240 Specifications

Specification	Detail
Model	F240
MSRP	$17,435.60
Frame	12" x 14 lb I-Beam Frame & Neck
Hitch	2 5/16" 25K Round Gooseneck Coupler
Axles	Axle, (2) 8K Electric, Spring (81-64)
Back	Straight Deck with Slide-in Ramps
Color	Midnight Black (PBS9-00005)
Tire	7 - 215/75R17.5 LRH Radial 16ply Tires
Cross-member	Crossmembers, 3" I-Beam on 16" Centers
Side	6" Channel Outer Frame
Jack	Jack, (2) 12K Spring Loaded
Floor	Treated Pine Wood Floor
Torque Tube	Torque Tube & Bridge Frame
Low-Profile	Low-Pro Option
